Symbol 671.1

SKU: SYM 671.1 Category:

Description

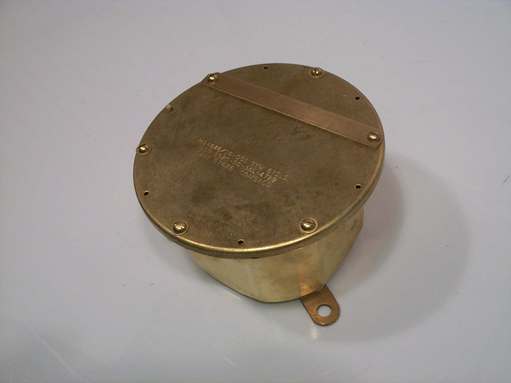

Fuse box, single circuit, 2 poles, 125 Volts, for 0-30 Amp midget fuses, Submersible to 15 feet. Consists of a 5" round enclosure per MIL-E-24142/5 fitted with an insulator having 2 sets of fuse clips that accommodate Type F09 fuses. Wire connections made to #8-32 screw terminals. Military Part Number M24646/18-001 per MIL-DTL-24646/18. NSN 5920-00-355-4729.

Click here for the drawing for 404-671.1

404dsh671pt1b  404dsh671pt1b
