Symbol 555.1

SKU: SYM 555.1 Category:

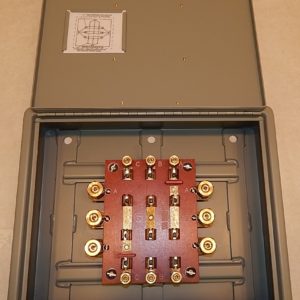

Fuse panel, 2 circuit, no switches, single phase feed and loads. Submersible (SBM-15), 250 volts AC,  0-30 amp Type F09 fuses.  For up to 200 MCM feeder, 40 MCM load cables connecting to compression type lugs per 9-S-73246 and 73055, respectively.  Brass enclosure size 10 x 10 x 3 per MIL-E-24142/6. Symbol 555.1 per MIL-DTL-24646/9.  Military P/N M24646/9-001. NSN 5920-00-296-4736. Weight 20.5 lbs.

Click here for the Drawing for 404-555.1

404dsh555pt1  404dsh555pt1
