Symbol 613

SKU: SYM 613 Category:

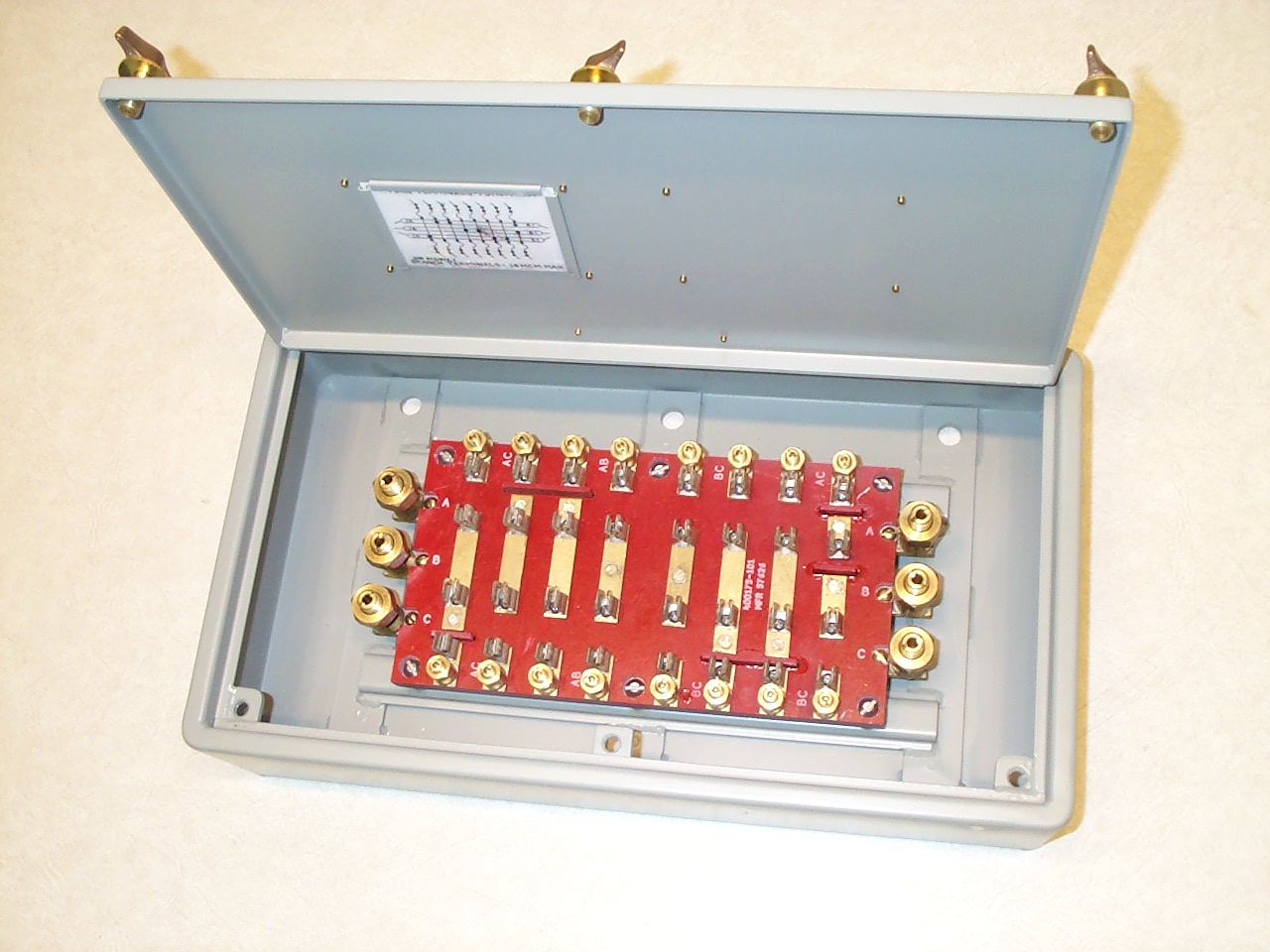

Fuse Panel, Navy Symbol 613, totally enclosed, 125 volts, three phase line, single phase loads, 8 circuit, no switches. Designed for maximum feeder of 75 MCM, maximum branch cable size 14 MCM. Enclosure is steel. Can be made in aluminum, if desired. Specify Symbol 613.1. Also can be modified for 480 volt applications.

Accepts midget fuses rated 0 - 30 amps, Type F09 per MIL-PRF-15160/9 for 125 volt applications and Type F60 per MIL-PRF-15160/60 for 480 volt applications.

Part number M24646/1-004 per MIL-DTL-24646A and MIL-DTL-24646/1A.

NSN: none assigned
