Symbol 613.1

SKU: SYM 613.1 Category:

Description

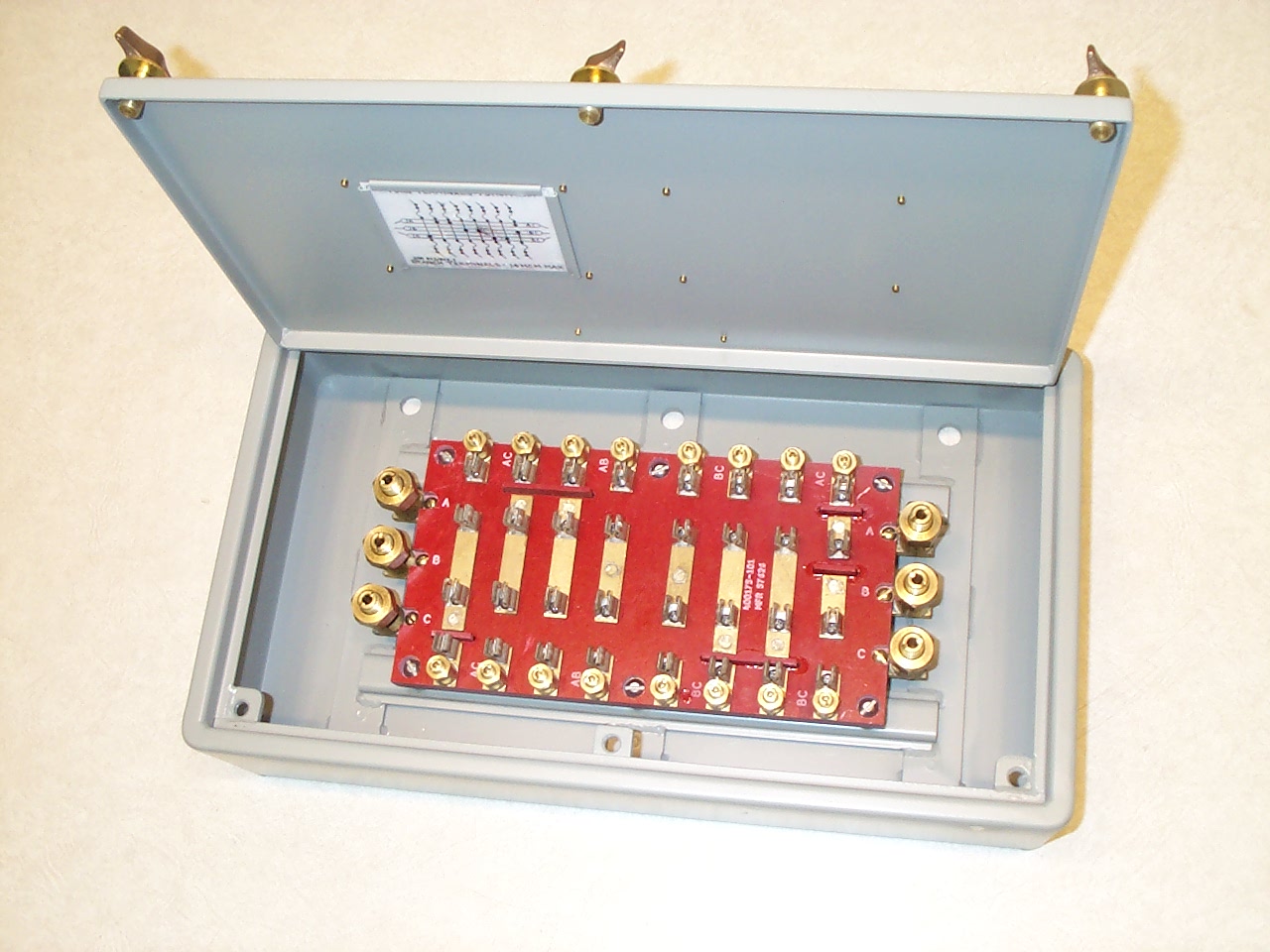

Fuse Panel, Navy Symbol 613.1, totally enclosed, 125 volts, three phase line, single phase loads, 8 circuit, no switches. Designed for maximum feeder of 75 MCM, maximum branch cable size 14 MCM. Enclosure is non-magnetic aluminum. Can be made in steel, if desired. Specify Symbol 613. Also can be modified for 480 volt applications.

Accepts midget fuses rated 0 - 30 amps, Type F09 per MIL-PRF-15160/9 for 125 volt applications and Type F60 per MIL-PRF-15160/60 for 480 volt applications.

Part number M24646/1-005 per MIL-DTL-24646A and MIL-DTL-24646/1A.

NSN 5920-00-845-1475
