Symbol 780.7

SKU: SYM 780.7 Category:

Description

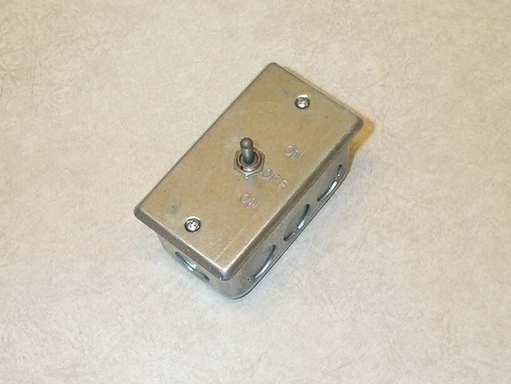

Switch assembly, toggle, double pole, double throw (on1-off-on2), 120 volts, 10 amps, Totally Enclosed, steel enclosure. Consisting of a sealed toggle switch mounted in the center of a 2x4 steel cover which is mounted to a 2x4 steel drawn box designed for surface mounting. Cable penetration is through 7/8" diameter knockouts in the sides, top and bottom of the box. Wiring interface is at #6-32 screw terminals on the switch. The use of ring-type terminals is recommended. Symbol 780.7 per Navsea Drawing 5184170 Method G-7-B/1. Also available as stud or flush mounting.

Click here for the Drawing for 404-780.7

Click here for the Drawing for 404-780.7  Click here for the Drawing for 404-780.7
