Symbol 523.1

SKU: SYM 523.1 Category:

Description

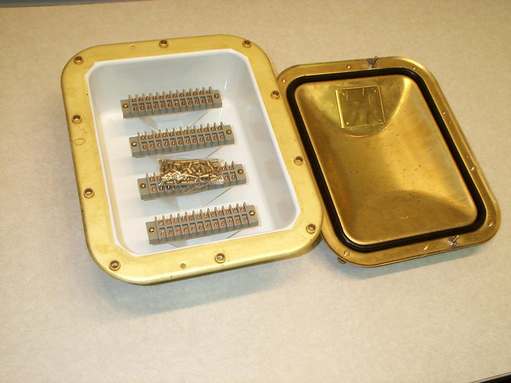

Terminal box, 96 terminals, 288 wires max, 600 volts, 30 amps max per terminal, submersible to 15 feet. Four (4) Type 6TB24 terminal boards mounted in a 10x13x5" deep brass enclosure. Part number M24558/11-523.1 per MIL-DTL-24558/11. NSN 5940-00-351-2227. Previously covered by NavShips drawing 9-S-74132.

Click here for the Drawing for 404-523.1 Rev B
