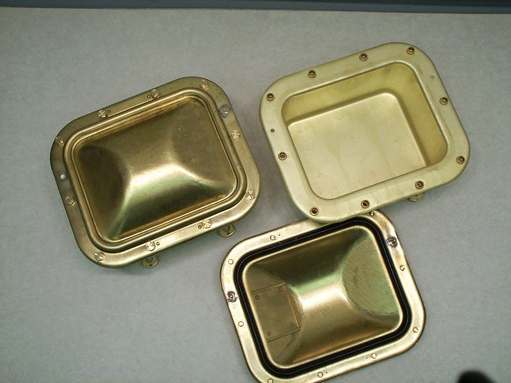

Enclosure assembly, size 8x10x5 inches deep. Brass, submersible to 15 feet. Normally furnished with domed (Type A) cover. Also available with flat (Type B) cover. Part number M24142/6-001 per MIL-E-24142/6. NSN 5975-00-296-4756. Photo shows the item with and without cover. Provisions can be made for installation of a mounting plate for components inside the box and a suitable plate can be supplied to meet your requirements.
The box is normally furnished 5 inches deep. It is also available in depths of 3 inches and 4 inches on special order.
For more specifications, please click here:
M241426 Enclosure Specs
