Symbol 780.4

SKU: SYM 780.4 Category:

Description

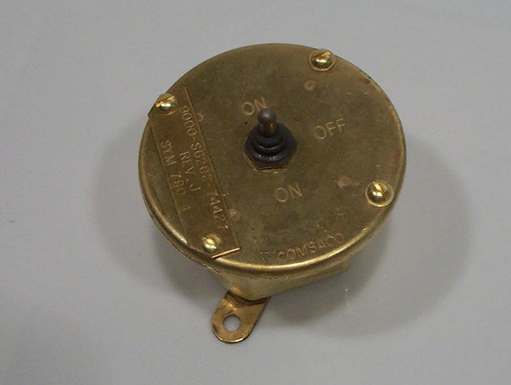

Switch assembly, toggle, DPDT, 10 Amp AC, 5 Amp DC, 125 V, non-magnetic, watertight. Consists of a double pole double throw (on-off-on) toggle switch mounted to the cover of a nominal 2-1/2" round brass enclosure. A rubber boot over the toggle provides watertight integrity along with the gasketed cover of the enclosure. Electrical connections are made directly to the switch contacts which are provided with #6-32 screws. This item is manufactured in accordance with NavShips Drawing 9-S-74427 and Comsaco Drawing 404-780.4. NSN 5930-00-522-5646. If single throw switching (on-off) is required, see Symbol 780.2.

Click here for the Drawing for 404-780-4-rev-d

Click here for the Drawing for 404-780-4-rev-d  Click here for the Drawing for 404-780-4-rev-d
