Symbol 561.1

SKU: SYM 561.1 Category:

Description

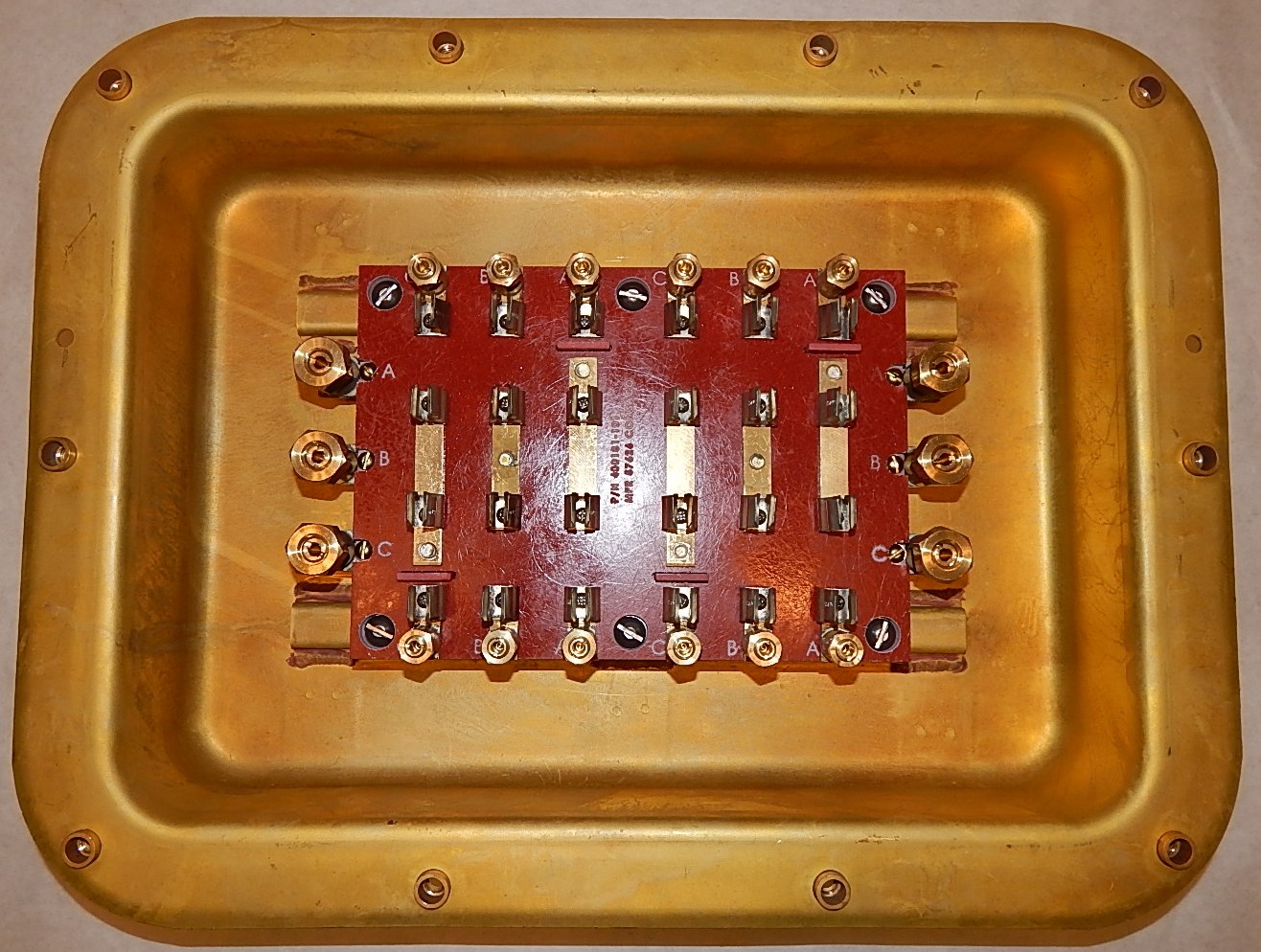

Fuse panel, 4 circuit, no switches, 3 phase feed, 6 single and 4 phase loads. Submersible (SBM-15), 250 volts AC,  0-30 amp Type F09 fuses.  For up to 75 MCM feeder, 40 MCM load cables connecting to compression type lugs per 9-S-73246 and 73055, respectively.  Brass enclosure size 12 x 17 x 3 per MIL-E-24142/6. Symbol 561.1 per MIL-DTL-24646/10.  Military P/N M24646/10-002. NSN 5920-00-028-3963. Weight 35.5 lbs.
