Symbol 438

SKU: SYM 438 Category:

Description

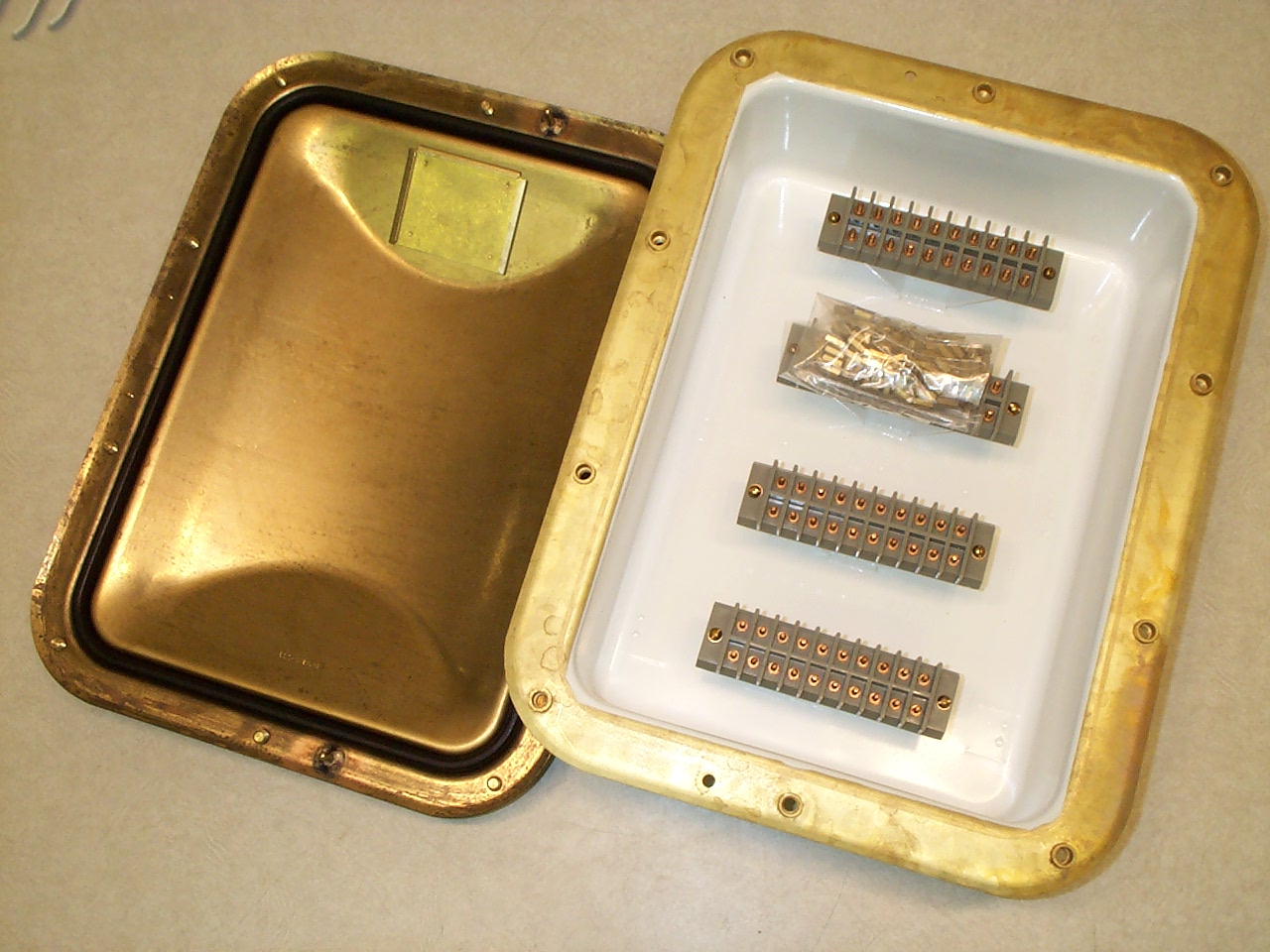

Terminal box, 80 terminal, 320 wires, 600 volts, 40 amps max per terminal, submersible to 15 feet. 4 Type 4TB20 terminal boards mounted in a 12x17x5" deep brass enclosure. Military Part Number M24558/10-438 per MIL-DTL-24558/10. NSN 5940-00-351-2228. Normally supplied with domed cover.

Click here for the Drawing for 404-438

click here for the Drawing for 404-438  click here for the Drawing for 404-438
