Symbol 434

SKU: SYM 434 Category:

Description

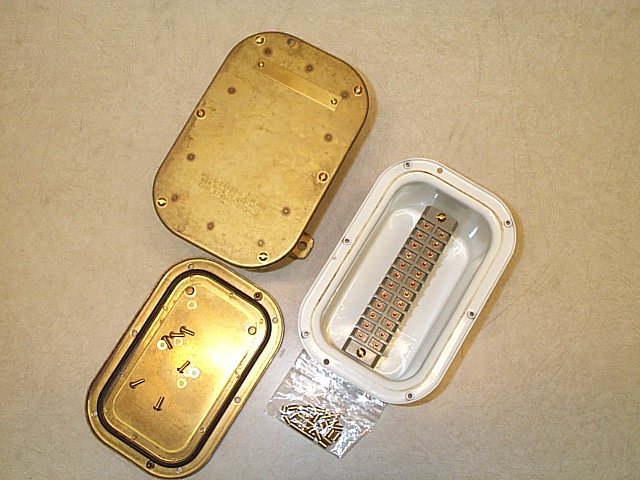

Terminal Box, 30 terminal, 90 wires, 600 volts, 30 amps per terminal, submersible to 15 feet. One (1) Type 6TB24 and one (1) Type 6TB6 terminal board mounted in a 4x7 brass enclosure. P/N M24558/5-434 per MIL-T-24558/5. NSN 5940-00-080-3931.

Click here for the Drawing for 404-434
