Symbol 406.2

SKU: SYM 406.2 Category:

Description

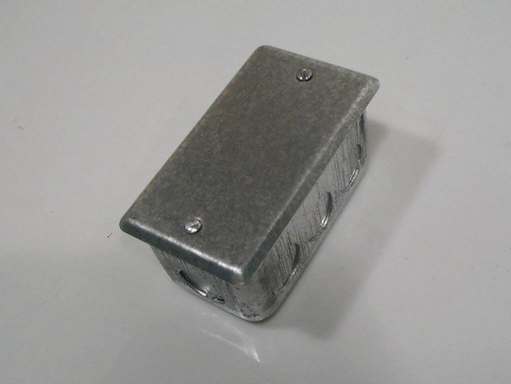

Connection Box, zinc-plated steel, totally enclosed, 2 x 4 x 2-1/8" deep with plain flat cover, with eleven (11) knockouts for 1/2" conduit located 3 on each side, 1 on each end and 3 on the back. Surface mounting. Per NAVSHIPS Dwg 5184170. NSN 5975-00-284-5827 (box) and 5975-00-280-7921 (cover).

Also available with facilities for stud mounting, see our Part Number 404186-101, with plain back, or with mounting holes as required.

Click here for the Drawing for 404-406.2
