Symbol 406.1

SKU: SYM 406.1 Category:

Description

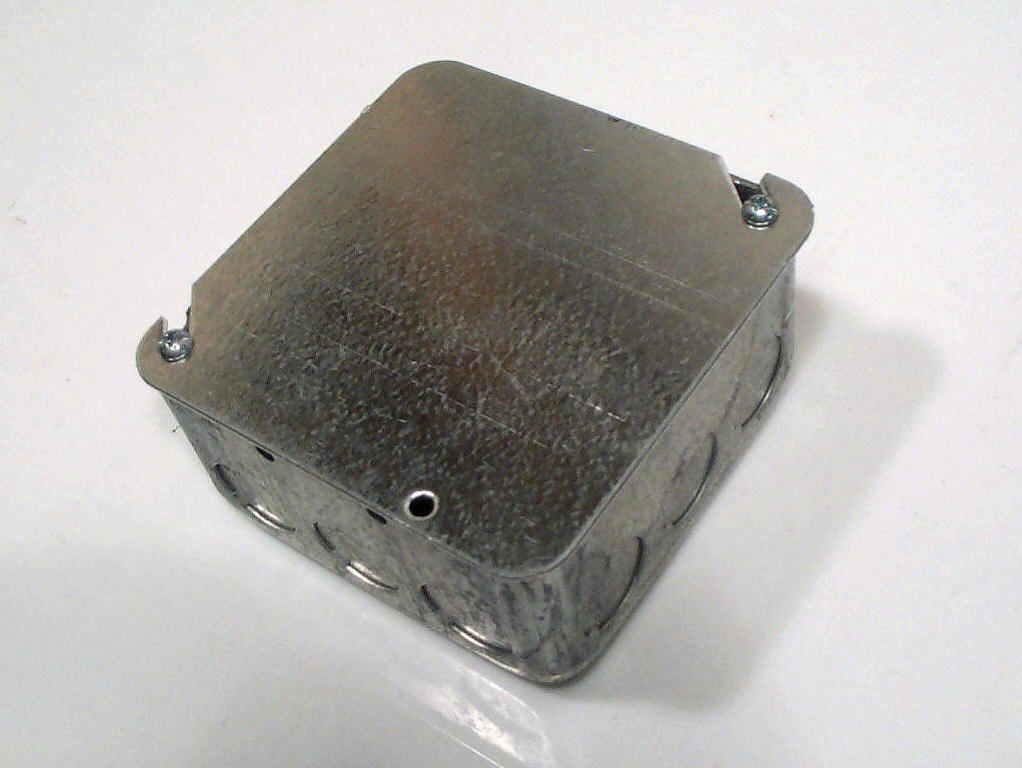

Connection Box, totally enclosed, zinc-plated steel, 4" square x 2-1/8" deep, with plain blank cover. With a minimum of 15 knockouts for 1/2" conduit located 3 on each side and on the back. Surface mounting. Per NAVSHIPS Dwg 5184170. NSN 5975-00-194-8877 (box) and 5975-00-281-0056 (cover).

Also available with provisions for stud mounting, see our Part Number 404186-102, and with a plain back or with mounting holes as required.
